Why ‘Digital X-ray Vision’ is Essential

Once drywall goes up on a construction project, the most critical components of a building become invisible. Electrical wiring, plumbing lines, HVAC ductwork, structural blocking, and low-voltage runs disappear behind sheetrock.

If something breaks two years later, or a client wants to hang heavy artwork, figuring out what is happening behind the wall usually involves guesswork, stud finders, or unnecessary exploratory holes.

Capturing a pre-drywall 3D scan with Matterport provides digital "X-ray vision" for the entire lifespan of a property.

What Is a Pre-Drywall Scan?

A pre-drywall scan takes place during the narrow window between rough-in completion (MEP; mechanical, electrical, and plumbing) and the hanging of drywall.

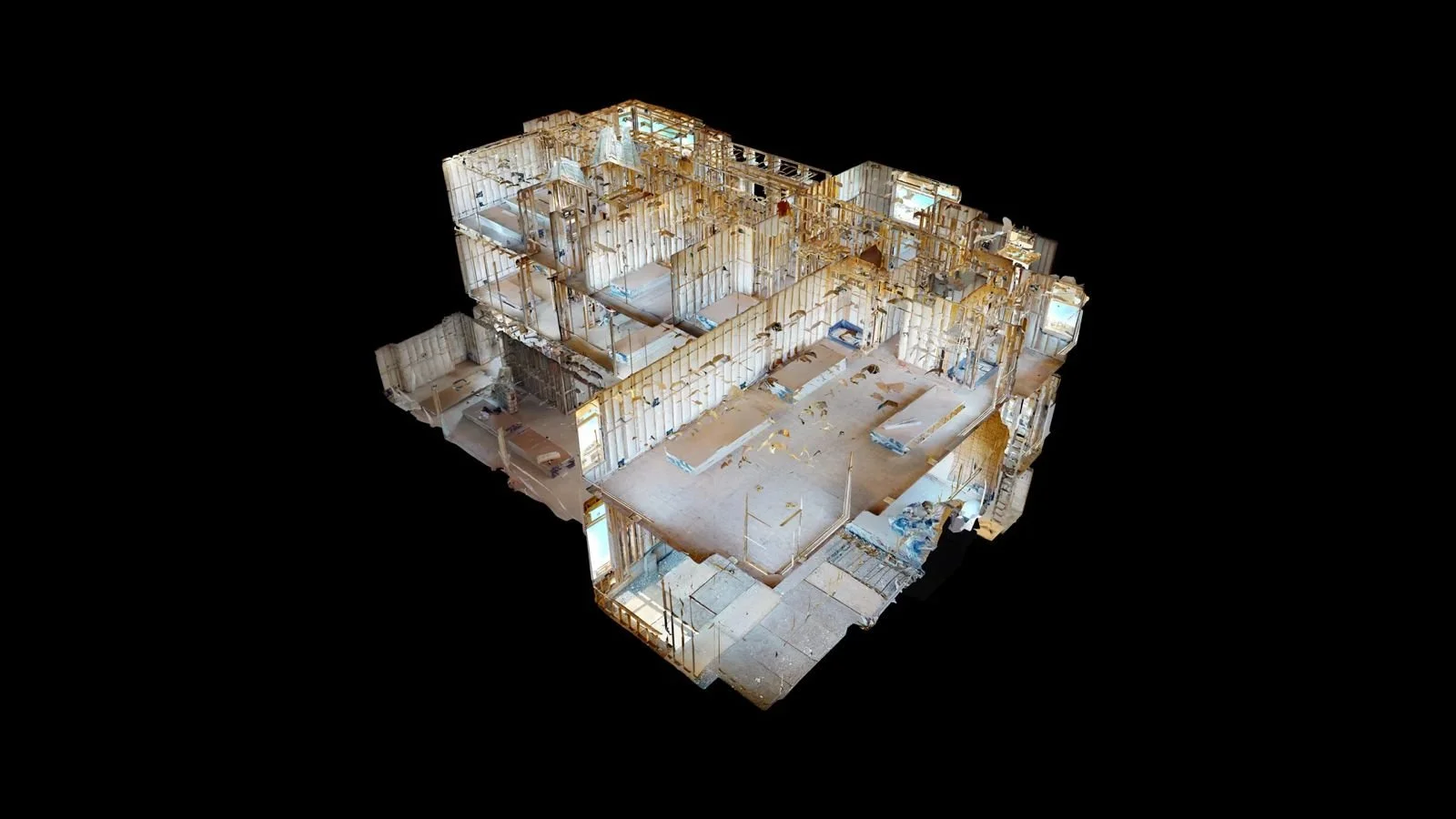

Using our 3D LiDAR camera or spatial capture device, a technician scans the job site at regular intervals. Matterport stitches these capture points into an interactive, photorealistic 3D digital twin of the exposed framework and utilities.

Key Benefits for Builders, Architects, and Homeowners

1. Eliminates Guesswork During Future Renovations

Years after construction finishes, homeowners or facility managers can pull up the pre-drywall scan, walk through the space virtually, and measure distances down to the inch.

• Hanging Heavy Fixtures: Know exactly where solid wood blocking sits behind the sheetrock.

• Avoid Disasters: Prevent drilling directly into a high-voltage conduit or a main water line when mounting televisions, cabinets, or shelving.

2. Streamlines Dispute Resolution & QC

During construction, sub-contractors move fast. A 3D scan creates an undeniable, time-stamped record of job-site conditions right before walls close.

• Verify proper insulation installation.

• Prove compliance with local building codes and MEP architectural plans.

• Resolve trade conflicts by verifying who installed what, and where, prior to wall closure.

3. Remote Job-Site Inspections & Site Visits

Project managers, general contractors, and out-of-town property owners can conduct walkthroughs without driving to the job site.

• Tag specific areas with Mattertags to attach notes, equipment manuals, or inspection sign-offs directly inside the 3D model.

• Overlay BIM files or point clouds to compare real-world conditions against original CAD designs.

Best Practices for a Seamless Pre-Drywall Scan

1. Time It Right: Schedule the capture after all rough-in building inspections pass, but immediately before the drywall crew begins hanging boards.

2. Ensure Adequate Lighting: Construction sites often lack permanent lighting. Use temporary work lights to eliminate dark shadows in corners and utility chases.

3. Clean the Floor: Sweep up debris, framing cutoffs, and loose trash so the camera maintains line-of-sight and captures clean floor-to-ceiling spatial geometry.

4. Tag Key Utilities: Use digital Mattertags within the scan to call out main water shut-off valves, electrical sub-panel locations, gas lines, and smart-home junction boxes.

The Bottom Line

A pre-drywall Matterport scan is a low-cost, high-value insurance policy for any residential or commercial build. For a fraction of the overall construction budget, you create a permanent, interactive digital blueprint that saves time, prevents costly mistakes, and adds long-term value to the property.
